Hot Melt Adhesive Film Mesh Glue Film for Clothing Decorating
Product Description
Hot Melt Adhesive Film Mesh Glue Film for Clothing Decorating
Item No. DS-W601
[color] white
[Specifications] 8-150 (gram weight: g/m2)
[Specifications] 7-3200 (width: mm)
[Pressure Condition (Temperature/Time/Pressure)] 130-150ºC, 10-15S, 1.5-3.0 kg
[Type] Non-woven Interlining
[Scope of application] clothing, Clothing Decorating, home textiles, toys

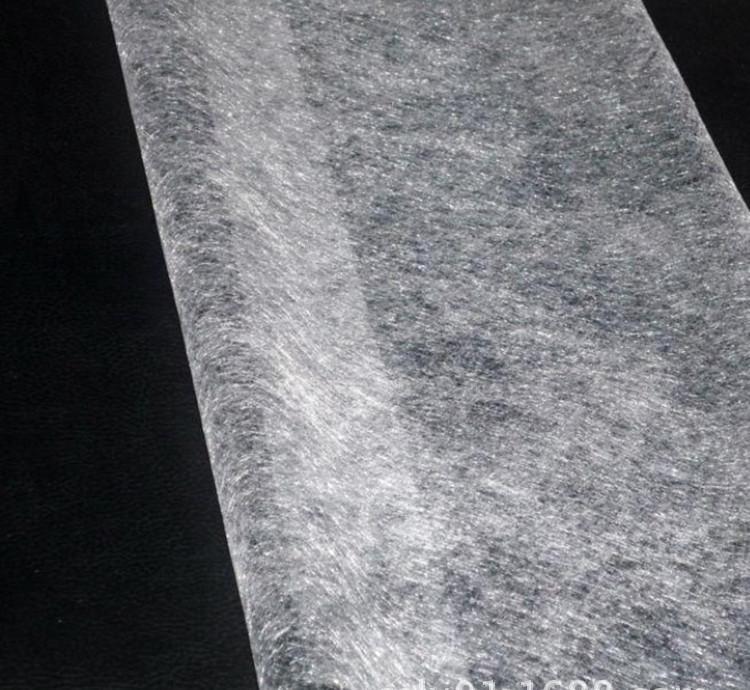

The hot melt adhesive mesh film known as double-sided adhesive is a hot-melt adhesive made by spinning, plaiting, and rolling into a net cloth. It has double-sided adhesive properties and is an indispensable accessory for apparel production. It is widely used Adhesion of garments, footwear, car interiors, etc., with good air permeability, firm adhesion, and easy operation, simply sandwich it in two layers of fabrics to be pasted and press hot with an iron or hot press.
Technical Data:
| Product | Main material | Item No. | Width (mm) |
Weight (g) |
Melt point | Pressure Condition | ||
| Time (s) |
Temperature (ºC) |
Pressure(kg) | ||||||
| Hot Melt Adhesive mesh film | PA | DS-W301 | 7-3200 | 8-150 | 115-130 | 10-15 | 130-150 | 1.5-3.0 |
| DS-W302 | 7-3200 | 8-150 | 95-116 | 10-15 | 120-140 | 1.5-3.0 | ||
| PES | DS-W401 | 7-3200 | 8-150 | 114-128 | 10-15 | 130-150 | 1.5-3.0 | |
| DS-W402 | 7-3200 | 8-150 | 120-135 | 10-15 | 130-150 | 1.5-3.0 | ||
| EVA | DS-W501 | 7-3200 | 10-100 | 65-85 | 10-15 | 90-110 | 1.5-3.0 | |
| TPU | DS-W601 | 7-3200 | 8-150 | 100-120 | 10-15 | 130-150 | 1.5-3.0 | |
Product Usage:
TPU can be widely used in aerospace applications, collectively known as optoelectronics, various fabrics, anti-static devices, printing, electronics, appliances, medicine, military, luggage and other applications. TPU hot-melt adhesive film has low composite temperature, good elasticity, waterproofness and good air permeability.
